Movie Library Management System ER Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

July 17 2017

Posted By: freeproject
Comments: 0

Posted By freeproject on July 17, 2017

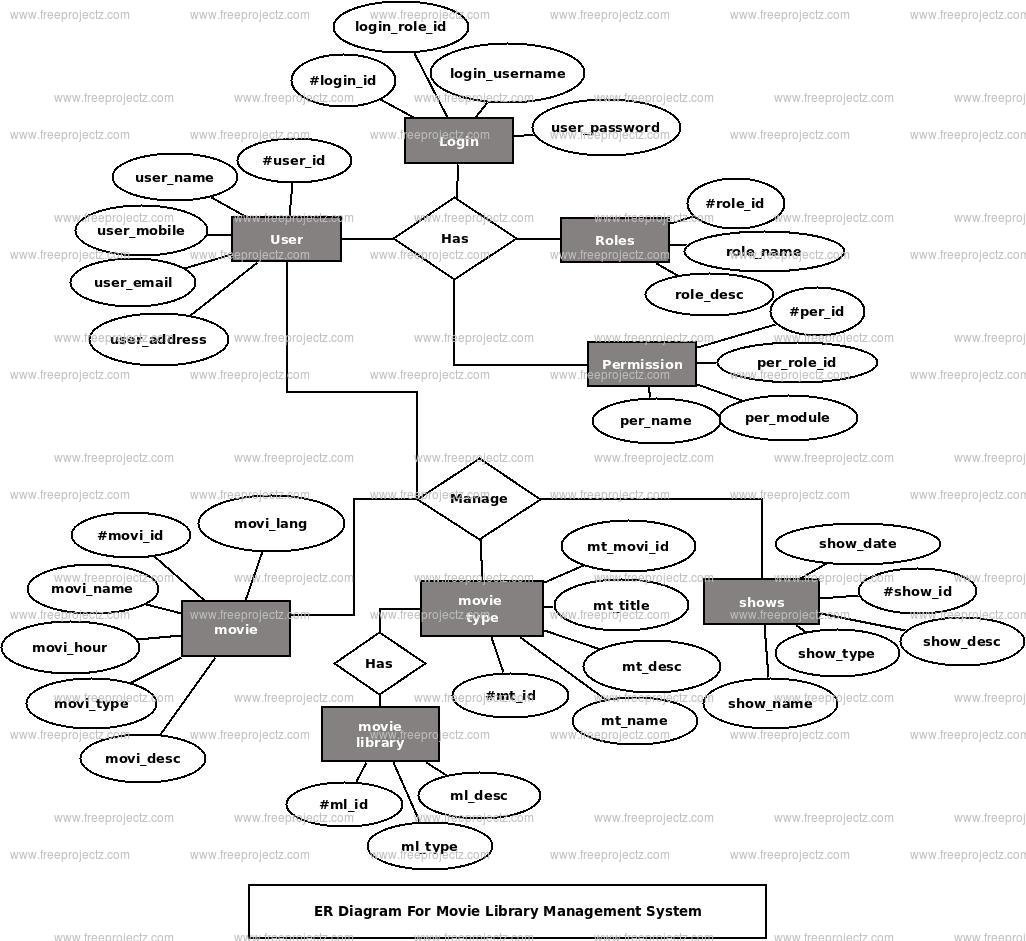

This ER (Entity Relationship) Diagram represents the model of Movie Library Management System Entity. The entity-relationship diagram of Movie Library Management System shows all the visual instrument of database tables and the relations between Movie Type, Shows, Movie Library, Login etc. It used structure data and to define the relationships between structured data groups of Movie Library Management System functionalities. The main entities of the Movie Library Management System are Movie Library, Movie Type, Movie, Shows, User and Login.

Movie Library Management System entities and their attributes :

Movie Library Entity : Attributes of Movie Library are movie_library_id, movie_library_name, movie_library_type, movie_library_description
Movie Type Entity : Attributes of Movie Type are movie_type_id, movie_type_movie_id, movie_type_name, movie_type_description
Movie Entity : Attributes of Movie are movie_id, movie_name, movie_language, movie_type, movie_hour, movie_description
Shows Entity : Attributes of Shows are show_id, show_name, show_type, show_time, show_date, show_description
User Entity : Attributes of User are user_id, user_name, user_mobile, user_email, user_username, user_password, user_address
Login Entity : Attributes of Login are login_id, login_user_id, login_role_id, login_username, login_password, login_lastlogin

Description of Movie Library Management System Database :

The details of Movie Library is store into the Movie Library tables respective with all tables
Each entity (Login, Movie, User, Movie Type, Movie Library) contains primary key and unique keys.
The entity Movie, User has binded with Movie Library, Movie Type entities with foreign key
There is one-to-one and one-to-many relationships available between User, Shows, Login, Movie Library
All the entities Movie Library, User, Movie, Login are normalized and reduce duplicacy of records
We have implemented indexing on each tables of Movie Library Management System tables for fast query execution.
