Advertisement Management System Class Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

August 2 2017

Posted By: freeproject
Comments: 0

Posted By freeproject on August 2, 2017

Advertisement Management System Class Diagram describes the structure of a Advertisement Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Advertisement Management System are Advertisement, Advertisement Types, Sizes, Payments, Customers, Places.

Classes of Advertisement Management System Class Diagram:

Advertisement Class : Manage all the operations of Advertisement
Advertisement Types Class : Manage all the operations of Advertisement Types
Sizes Class : Manage all the operations of Sizes
Payments Class : Manage all the operations of Payments
Customers Class : Manage all the operations of Customers
Places Class : Manage all the operations of Places

Classes and their attributes of Advertisement Management System Class Diagram:

Advertisement Attributes : advertisement_id, advertisement_title, advertisement_Type, advertisement_description
Advertisement Types Attributes : advertisement types_id, advertisement Types_title, advertisement types_description
Sizes Attributes : sizes_advertisement_id, size_description
Payments Attributes : payment_id, payment_customer_id, payment_date, payment_amount, payment_description
Customers Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
Places Attributes : place_id, place_name, place_address, place_description

Classes and their methods of Advertisement Management System Class Diagram:

Advertisement Methods : addAdvertisement(), editAdvertisement(), deleteAdvertisement(), updateAdvertisement(), saveAdvertisement(), searchAdvertisement()
Advertisement Types Methods : addAdvertisement Types(), editAdvertisement Types(), deleteAdvertisement Types(), updateAdvertisement Types(), saveAdvertisement Types(), searchAdvertisement Types()
Sizes Methods : addSizes(), editSizes(), deleteSizes(), updateSizes(), saveSizes(), searchSizes()
Payments Methods : addPayments(), editPayments(), deletePayments(), updatePayments(), savePayments(), searchPayments()
Customers Methods : addCustomers(), editCustomers(), deleteCustomers(), updateCustomers(), saveCustomers(), searchCustomers()
Places Methods : addPlaces(), editPlaces(), deletePlaces(), updatePlaces(), savePlaces(), searchPlaces()

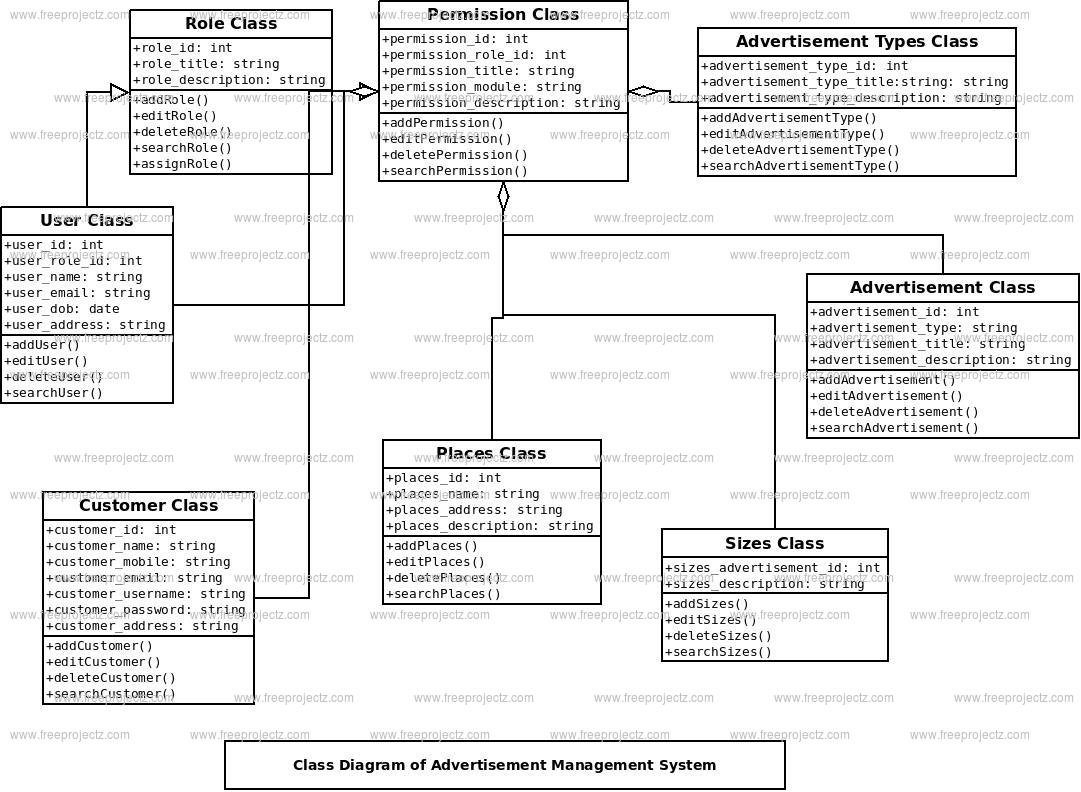

Class Diagram of Advertisement Management System :

Class Diagram Image:

Advertisement Management System Class Diagram
