Student Management System ER Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

July 17 2017

Posted By: freeproject
Comments: 0

Posted By freeproject on July 17, 2017

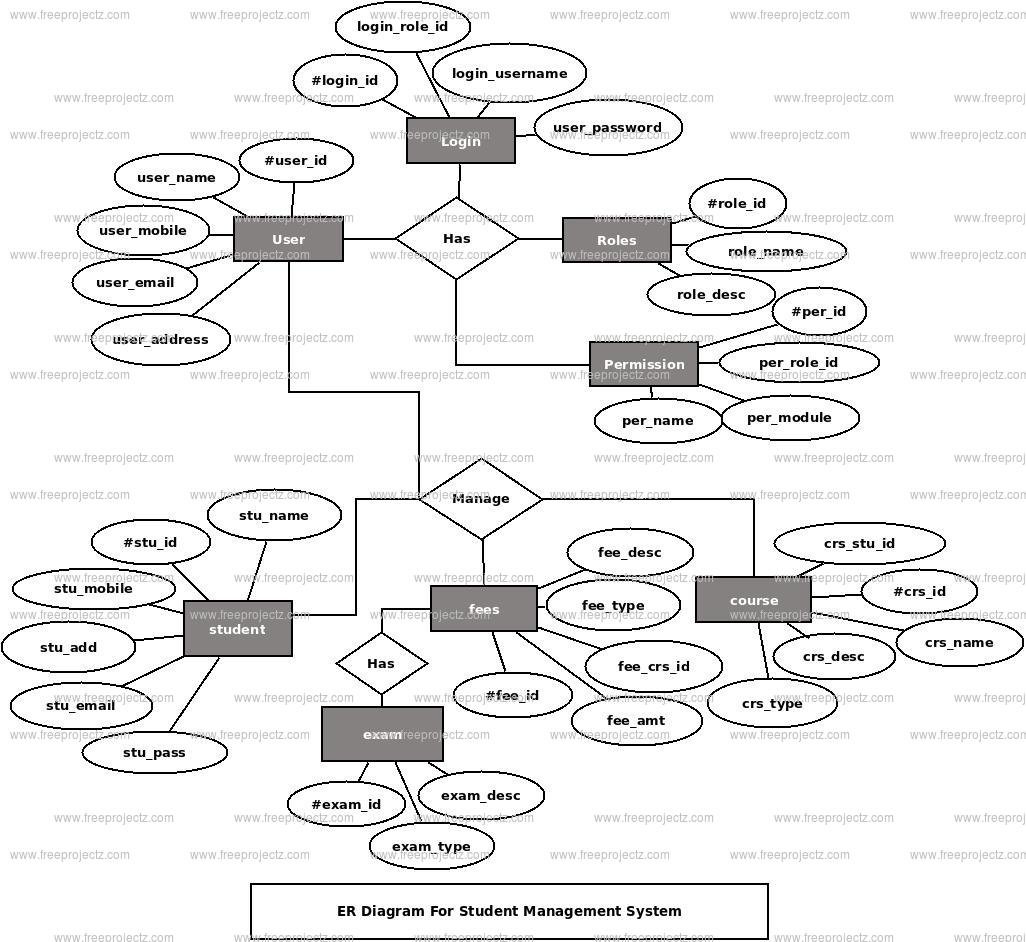

This ER (Entity Relationship) Diagram represents the model of Student Management System Entity. The entity-relationship diagram of Student Management System shows all the visual instrument of database tables and the relations between Fees, Profiles, Student, Exams etc. It used structure data and to define the relationships between structured data groups of Student Management System functionalities. The main entities of the Student Management System are Student, Fees, Logins, Profiles, Cources and Exams.

Student Management System entities and their attributes :

Student Entity : Attributes of Student are student_id, student_college_id, student_name, student_mobile, student_email, student_username, student_password, student_address
Fees Entity : Attributes of Fees are fee_id, fee_course_id, fee_amount, fee_total, fee_payment, fee_type, fee_description
Logins Entity : Attributes of Logins are login_id, login_user_id, login_role_id, login_username, login_password, login_lastlogin
Profiles Entity : Attributes of Profiles are profile_id, profile_name, profile_type, profile_description
Cources Entity : Attributes of Cources are course_id, course_student_id, course_registration, course_name, course_type, course_year, course_description
Exams Entity : Attributes of Exams are exam_id, exam_student_id, exam_roll_number, exam_date exam_name, exam_type, exam_description

Description of Student Management System Database :

The details of Student is store into the Student tables respective with all tables
Each entity ( Exams, Logins, Cources, Fees, Student) contains primary key and unique keys.
The entity Logins, Cources has binded with Student, Fees entities with foreign key
There is one-to-one and one-to-many relationships available between Cources, Profiles, Exams, Student
All the entities Student, Cources, Logins, Exams are normalized and reduce duplicacy of records
We have implemented indexing on each tables of Student Management System tables for fast query execution.
